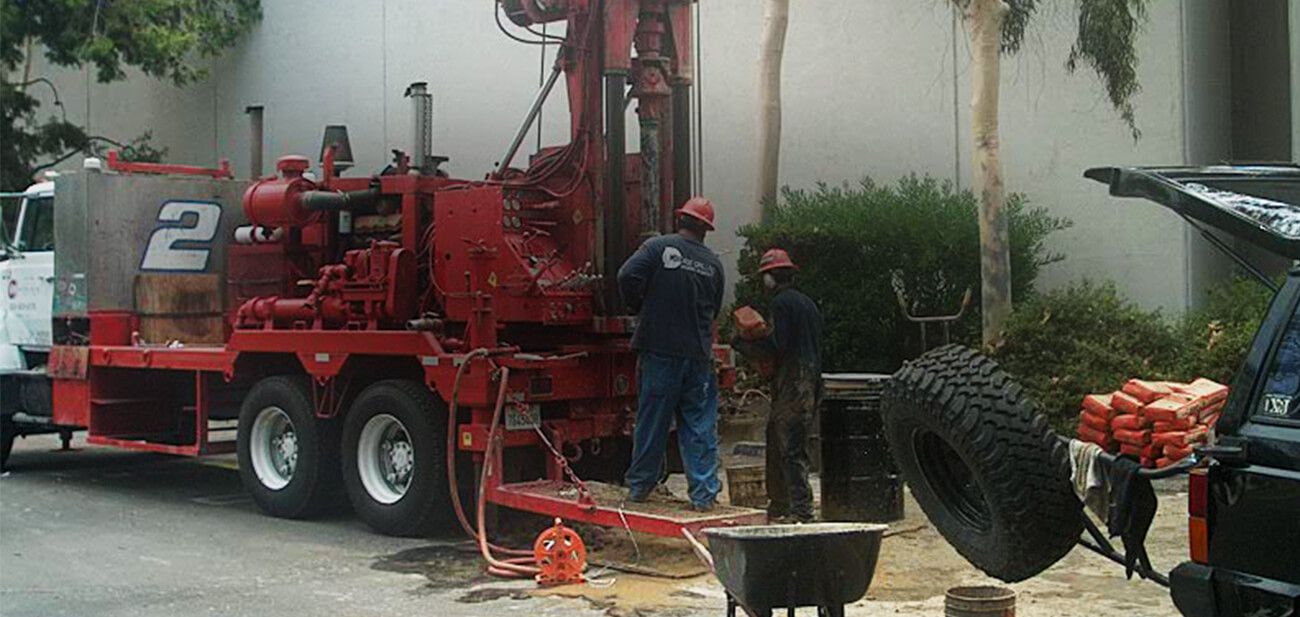

Monitoring Settlement: Why It’s Critical for Structural Safety and Long-Term Performance

Structural stability begins below the surface. In civil engineering, few risks are as underestimated—and as potentially destructive—as uncontrolled ground movement. That’s why monitoring settlement plays a critical role in protecting foundations, infrastructure, and public safety.

At G3SoilWorks, our geologic engineers bring more than 100 years of combined experience in geotechnical, environmental, and engineering geologic consulting throughout Southern California and the western United States. We’ve seen firsthand how early and precise settlement monitoring can mean the difference between minor adjustments and catastrophic structural failure.

This guide explains what settlement is, why it occurs, how it’s monitored, and how proactive data analysis helps prevent costly damage.

1. Why Settlement Monitoring Is Critical for Structural Safety

What Is Settlement in Civil Engineering?

Settlement refers to the vertical downward movement of soil or structural foundations due to changes in load, soil consolidation, groundwater variation, or construction activities. While some settlement is expected after construction, problems arise when it becomes:

• Excessive

• Uneven (differential settlement)

• Progressive over time

Even small variations in ground movement can introduce significant stress into a structure’s foundation system.

Why Foundations Are Vulnerable

Foundations transfer building loads to underlying soil. However, soil is not a uniform material. Its behavior depends on:

• Density and compaction

• Moisture content

• Soil type (clay, sand, silt, fill)

• Load magnitude and distribution

Clay-rich soils common in parts of Southern California, for example, may expand and contract significantly with moisture changes. Loose fill soils may consolidate under sustained loading. Without proper monitoring building settlement, these shifts may go unnoticed until visible structural distress appears.

The Importance of Early Detection

Early detection through settlement monitoring allows engineers to:

• Identify movement trends before structural damage occurs

• Distinguish between normal post-construction settlement and abnormal behavior

• Implement corrective measures before costs escalate

• Protect occupants and surrounding properties

Proactive monitoring settlement reduces liability exposure, protects infrastructure investments, and ensures regulatory compliance.

2. Common Causes and Risks of Foundation Settlement

Settlement rarely occurs without cause. Understanding risk factors helps engineers determine where monitoring is essential.

1. Soil Compaction Issues

Improperly compacted fill is one of the most common contributors to excessive settlement. When soil isn’t compacted to engineered specifications:

• Voids remain

• Load redistribution occurs

• Gradual consolidation follows construction

Over time, these conditions can lead to uneven foundation movement.

2. Groundwater Changes

Water significantly affects soil strength and compressibility. Changes in groundwater conditions can result from:

• Drought conditions

• Heavy rainfall

• Nearby excavation

• Dewatering activities

• Leaking utilities

Fluctuating groundwater can soften supporting soils or cause shrink-swell cycles, increasing the need for monitoring ground settlement.

3. Overloading and Construction Activities

Additional structural loads, adjacent development, or vibration from construction activities can alter subsurface stress conditions. High-rise developments, tunneling, and infrastructure expansion frequently require monitoring surface settlement to ensure nearby properties are not adversely affected.

Consequences of Unchecked Settlement

If left unmonitored, foundation settlement may cause:

• Cracked walls and slabs

• Door and window misalignment

• Sloping floors

• Structural tilting

• Utility line rupture

• Compromised structural integrity

• In extreme cases, partial collapse

The financial and safety implications make settlement monitoring an essential risk management tool.

3. Key Settlement Monitoring Methods Used in Civil Engineering

Multiple techniques are available depending on project size, soil conditions, and risk profile. Each method provides unique data about vertical and lateral movement.

1. Precision Levelling

Precision levelling involves highly accurate surveying methods to measure elevation changes over time.

How it works:

• Benchmarks are established on stable reference points.

• Periodic measurements track minute elevation differences.

• Results are compared against baseline data.

This method is widely used for monitoring building settlement and large structural foundations.

2. Settlement Markers and Settlement Plates

Settlement plates are installed at ground level or within fill material during construction.

How it works:

• A plate rests on soil layers expected to consolidate.

• A vertical riser pipe extends to the surface.

• Survey readings measure vertical displacement.

This technique is commonly used for embankments, roadways, and preload projects.

3. Automated Total Stations (ATS)

Automated total stations provide remote, high-precision measurements of structural movement.

How it works:

• Prisms are installed on structures.

• The instrument automatically measures horizontal and vertical displacement.

• Data is transmitted digitally for analysis.

ATS systems are ideal for large infrastructure projects where continuous monitoring settlement is required.

4. Inclinometers and Piezometers

While settlement primarily refers to vertical movement, lateral displacement and groundwater changes often contribute.

• Inclinometers measure horizontal soil movement.

• Piezometers monitor pore water pressure within soil.

Together, these tools provide deeper insight into subsurface behavior, especially in retaining walls, dams, and excavations.

5. Real-Time Monitoring with IoT Sensors

Modern projects increasingly rely on sensor-based systems.

How it works:

• Wireless sensors continuously measure displacement.

• Data is transmitted in real time.

• Alerts trigger when thresholds are exceeded.

This approach enhances proactive monitoring and enables faster response to emerging risks.

4. How Monitoring Data Helps Predict and Prevent Foundation Failure

Collecting data is only the first step. Interpretation by experienced geotechnical professionals is critical.

Detecting Early Warning Signs

Settlement rarely occurs instantaneously. It typically develops gradually. Monitoring identifies:

• Accelerating settlement rates

• Unexpected displacement patterns

• Deviations from predicted models

These early signals allow engineers to intervene before structural damage escalates.

Tracking Vertical Displacement Trends

Plotting movement over time helps determine whether settlement is:

• Stabilizing (normal consolidation)

• Continuing at a predictable rate

• Increasing abnormally

Trend analysis supports engineering decision-making and compliance reporting.

Identifying Differential Settlement

Uniform settlement may not compromise structural performance. However, differential settlement—where one portion moves more than another—introduces stress concentrations.

Monitoring building settlement helps detect these variations before they cause cracking or distortion.

Enabling Timely Corrective Actions

If monitoring reveals problematic trends, corrective measures may include:

• Soil stabilization or grouting

• Foundation underpinning

• Drainage improvements

• Load redistribution

• Structural reinforcement

With accurate data, interventions are targeted and cost-effective.

5. Applications of Settlement Monitoring in Major Projects

Settlement monitoring is essential across multiple sectors.

Buildings & High-Rise Structures

Urban construction often occurs adjacent to existing structures. Monitoring protects:

• Neighboring properties

• Foundations during deep excavation

• Post-construction performance

High-rise projects particularly benefit from ongoing monitoring building settlement to verify design assumptions.

Bridges & Flyovers

Bridges experience dynamic loads and environmental exposure. Settlement monitoring ensures:

• Abutment stability

• Pier integrity

• Long-term alignment

Early detection prevents costly retrofits and service interruptions.

Tunnels & Underground Works

Tunneling activities can induce ground movement at the surface. Monitoring surface settlement helps:

• Protect roadways and utilities

• Prevent adjacent building damage

• Maintain regulatory compliance

Dams, Embankments & Retaining Walls

Large earth structures are especially sensitive to consolidation and pore pressure changes.

Monitoring systems help evaluate:

• Stability under loading

• Seepage effects

• Long-term deformation patterns

These projects require expert interpretation to maintain safety and environmental compliance.

Conclusion: Proactive Monitoring Settlement Protects Infrastructure Investments

Effective monitoring settlement is not simply a construction formality—it is a foundational risk management strategy that protects lives, infrastructure, and financial investments. From high-rise buildings to tunnels and embankments, accurate monitoring allows engineers to detect movement early and act decisively.

At G3SoilWorks, our experienced geologic engineers have delivered trusted geotechnical and engineering consulting services throughout Southern California and the western United States for decades. With more than 100 years of combined expertise, our team understands regional soil conditions, regulatory requirements, and the technical precision required for effective settlement monitoring.

When properly implemented and professionally interpreted, this ensures structural longevity, regulatory compliance, and long-term safety.

Schedule a consultation with G3SoilWorks to evaluate your project’s settlement monitoring needs and protect your investment from the ground up.

FAQs

1. How often should settlement monitoring be performed?

The frequency depends on project risk level, soil conditions, and structural sensitivity. High-risk projects may require continuous real-time monitoring, while lower-risk developments may use weekly or monthly precision surveys. Monitoring schedules are typically defined during the geotechnical planning phase.

2. What is the difference between total and differential settlement?

Total settlement refers to overall vertical downward movement of a structure. Differential settlement occurs when different parts of the structure move at different rates or magnitudes, which can introduce stress and structural cracking.

3. When is settlement considered excessive?

Settlement becomes excessive when movement exceeds design tolerances or begins to impact structural integrity, serviceability, or adjacent properties. Acceptable limits vary depending on structure type and soil conditions.

4. Can settlement monitoring prevent foundation failure?

Monitoring itself does not prevent failure, but it provides early warning data. Engineers can use this information to implement corrective measures such as soil stabilization, underpinning, or drainage improvements before significant damage occurs.

5. Is settlement monitoring required by building codes?

Requirements vary by jurisdiction and project type. In many large infrastructure, excavation, or high-risk developments, regulatory agencies require monitoring to protect public safety and neighboring structures.
